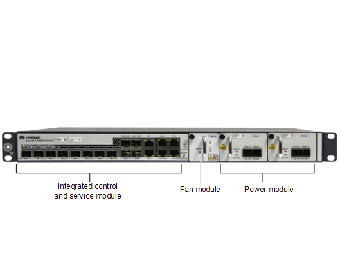

huawei EA5801-CG04

  • Model:

  • Detail:

  • Price:

    Request For Quotation

  • Condition:

    Brand New Sealed
  • Availability:

  • Quantity:

  • Free Technical Support
  • Product Quality Protection
  • On-time Shipment
Overview



Dimensions and weight of the EA5801-CG04

Item

Specification

Dimensions (H x W x D, excluding mounting ears)

43.6 mm x 442.0 mm x 222.3 mm

Dimensions (H x W x D, including mounting ears of IEC standard)

43.6 mm x 482.6 mm x 222.3 mm

Dimensions (H x W x D, including mounting ears of ETSI standard)

43.6 mm x 535.0 mm x 222.3 mm

Maximum fully-loaded weight (DC)

4.1 kg

Maximum fully-loaded weight (AC)

4.5 kg

Power Supply

Power supply specification of the EA5801-CG04

Specification

Value

Power supply mode

DC (dual power for backup)

AC (dual power for backup)

Rated voltage

-48 V/-60 V

110 V/220 V

Working voltage range

-38.4 V to -72

100 V to 240 V

Maximum input current

6 A

2.5 A

Power Consumption

Power consumption of the EA5801-CG04 (Unit: W)

Typical Configuration

Static power consumption

Maximum power consumption

Typical power consumption

EA5801-CG04 (DC)

45

79

62.0

EA5801-CG04 (AC)

47

82

64.5
