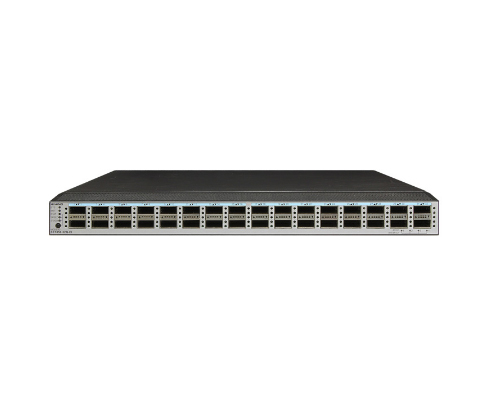

Huawei CloudEngine CE7800 Series Data Center Switch
-
Model:
Huawei Data Center Switches -
Detail:
Huawei CloudEngine CE7800 series (CE7800 for short) switches are next-generation 40G Ethernet switches designed for data centers and high-end campus networks, providing high-performance, high-density 40 GE ports, and low latency. The switch hardware has a hardware architecture with 40 GE QSFP+ ports. -
Price:
$10.00
- Free Technical Support
- Product Quality Protection
- On-time Shipment
- +86 755 8215 3862
- leo@uonel.com
- ywx39894
Huawei CloudEngine CE7800 Series Data Center Switch
Huawei CloudEngine CE7800 series (CE7800 for short) switches are next-generation 40G Ethernet switches designed for data centers and high-end campus networks, providing high-performance, high-density 40 GE ports, and low latency. The switch hardware has a hardware architecture with 40 GE QSFP+ ports.
Using the Huawei VRP8 software platform, CE7800 switches provide extensive data center service features and high stacking capability. In addition, the airflow direction (front-to-back or back-to-front) can be changed. CE7800 switches can work with CE12800/CE8800/CE6800/CE5800 switches to build an elastic, virtualized, high-quality fabric that meets the requirements of cloud-computing data centers.
CE7800 switches can function as core or aggregation switches on data center networks to help enterprises and carriers build a scalable data center network platform in the cloud computing era. They can also be used as aggregation or core switches for enterprise campus networks.
The CE7800 comes in two models.
Model and appearance | Description |
---|---|
CE7850-32Q-EI |
32 x 40 GE QSFP+ ports |
CE7855-32Q-EI |
32 x 40 GE QSFP+ ports |
Item | CE7800-32Q-EI | CE7855-32Q-EI |
---|---|---|
Ports | 32 x 40 GE QSFP+ | |
Switching Capacity | 2.56 Tbit/s | |
Forwarding Performance | 1,440 Mpps | |
Dimensions (W x D x H) | 17.4 in. x 23.9 in. x 1.7 in. (442 mm x 607 mm x 43.6 mm) | 17.4 in. x 23.9 in. x 1.7 in. (442 mm x 607 mm x 43.6 mm) |
Weight (fully loaded) | 11.2 kg (24.7 lb) | 11.2 kg (24.7 lb) |
Maximum Power Consumption | 431W | 444W |
