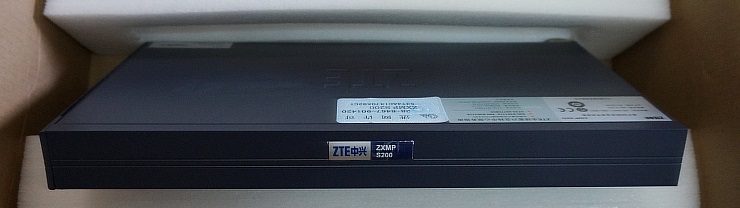

ZTE S200 mini MSTP ZTE ZXMP S200 SDH
-
Model:
ZTE S200 ZTE Transmission SDH -
Detail:
MSTP(STM-4/STM-1) -
Price:
$2000.00
- Free Technical Support
- Product Quality Protection
- On-time Shipment
- +86 755 8215 3862
- leo@uonel.com
- ywx39894
High level of integration and small size
ZXMP S200 employs a "system board +plug-in board" structure, featuring high level of integration. In typical configuration, it is only 1U in height and 5.5kg in weight, and its power consumption is smaller than 30W. The system board is an integrated multi-service system, comprising service unit, network management unit, cross-connect unit, clock unit, power supply unit and auxiliary management interface. It implements all SDH NE basic functions on a single board. ZXMP S200 supports one extension slot, enabling on-demand extension and upgrade via adding plug-in boards.
Supported service types: SDH interface, PDH interface, Data interface, Auxiliary interface.
Employs SFP module, supports online upgrade of network equipment from 155M to 622M. Provides 64×64 VC-4 high-order cross-connect capability and 2037×2037 VC-12 lower-order cross-connect capability. It can be used as standard TM equipment, ADM equipment and REG equipment.
2-fiber bidirectional multiplex section protection ring
4-fiber bidirectional/unidirectional link multiplex section 1+1 or 1:1 protection
2-fiber path protection ring
Subnet connection protection
Dual-node interconnection protection mode
Specification
|
Size (H×W×D) |
45mm × 442mm × 240 mm |
|
Weight |
5.5 kg |
|
Number of service slots |
1 |
|
Switching capacity |
64×64VC-4,2037×2037 VC-12 |
|
Service Interface |
STM-4, STM-1 E1, T1 FE(e/o) N×64K RS232/RS485/RS422,2/4-line VF interface |
|
Maintenance and operation |
Front cabling, front installation and front maintenance |
|
Power supply (DC/AC) |
220/110V AC, -48/-60V DC, +24V DC |
|
Power Consumption |
<30 Watts |
|
MTBF/MTTR |
>20000h / <2 h |
|
Noise |
<55 dB |
|
Operating Environment Requirement |
-5° C ~+50° C, 5%~95%, Non-condensing |
|
Altitude |
<4000 m |
