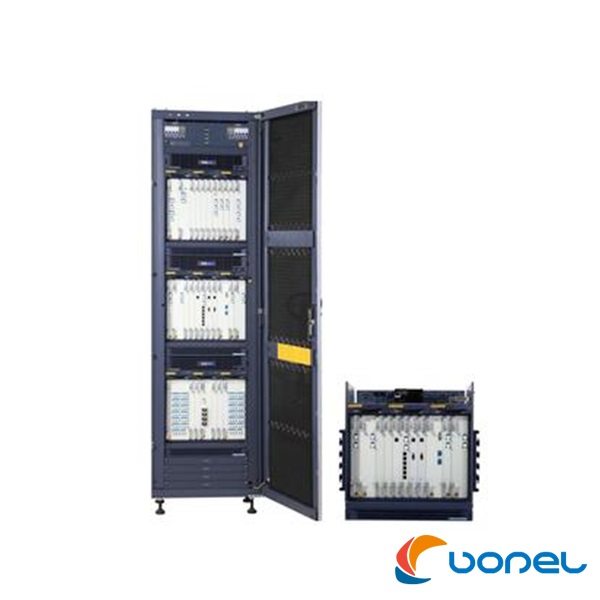

ZTE M800 ZTE ZXMP M800 ZTE Metro OTN DWDM CWDM
-
Model:
ZTE ZXMP M800 -
Detail:
ZTE WDM Metro WDM Product DWDM CWDM -
Price:
$2000.00
- Free Technical Support
- Product Quality Protection
- On-time Shipment
- +86 755 8215 3862
- leo@uonel.com
- ywx39894
The ZXMP M800 MSTP Metropolitan Area Wavelength Division Equipment (abbreviated as ZXMP M800) is applicable to the large-capacity optical transmission. It can satisfy the networking and management requirements of users at different levels and can be used to construct local networks and metropolitan core networks of different scales. In addition to large capacity and multiple optical interfaces like DWDM equipment in the backbone network, ZXMP M800 has such features required in MAN as flexibility, expandability, multi-service access and multiple protections. The system can multiplex 80 working wavelengths at most and the maximum transmission capacity can be up to 800Gb/s. The wavelength selection and interval are in strict compliance with some ITU-T recommendations. The system supports multiple networking topologies; the perimeter of the ring network can be 800kms, but the perimeter in the actual project can be up to 806kms.
|
Featured technique |
Application case |
|
Optical path shared protection |
Wharf T&T, Hainan Mobile provincial backbone network, Suzhou Telecom metro network, Shenzhen Telecom metro network, Zhejiang Telecom metro network. |
|
Optical path 1+1 protection |
Portugal's AR Telecom metro backbone network, India's BSNL national backbone network, Suzhou Telecom metro network, Shenzhen Telecom metro network. |
|
IWF |
China Telecom national backbone network, China Netcom national backbone network, China Unicom backbone network |
|
APO |
India's BSNL national backbone network, Pakistan's Etisalat PTCL national backbone network, China Mobile west national backbone network, China Telecom national backbone network, China Netcom provincial backbone network, China Unicom provincial backbone network. |
|
Adaptive access of 10GE LAN/WAN services |
Beijing-Shanghai national backbone network |
|
ROADM |
Chongqing Telecom WDM system, China's first ROADM commercial application; passing the multi-degree ROADM tests conducted by multiple operators in Bengal, South Africa and Brazil. |
|
GSS |
Dongying Netcom local network (Shandong), Jinan Netcom metro network (Shandong) ,Suining Telecom local network(Sichuan) |
ZTE ZXMP M800 boards List:
OTU 2.5Gb/s Optical transponder unit
OTUF 2.5Gb/s Optical transponder unit with the FEC function
EOTU10G Enhanced 10Gb/s optical transponder unit with FEC/AFEC
SRM41 Sub-rate Mux Board
SRM42 Sub-rate Mux Board
GEM2 Gigabit Ethernet Multiplex Board
GEMF Gigabit Ethernet Multiplex Board with FEC function
GEM8 Eight Gigabit Ethernet Mux Board
FCA Fiber Channel Access
DSA Data Service Aggregation Board
DSAF Data Service Aggregation with FEC
OMU Optical multiplex unit
ODU Optical demultiplex unit
OCI Optical channel multiplex
Demultiplex interleaver board
OBM Broadband multiplex board
OGMD6C Optical group mux/demux board
EOBA Enhanced optical booster amplifier
EOLA Enhanced optical line amplifier
EOPA Enhanced Optical pre-amplifier
EONA Enhanced node amplifier
EOBAH Enhanced high power optical booster amplifier
DRA Distributed Raman amplifier
OAD8 Optical add/drop multiplex board
WBU Wavelength Blocking Unit
WSU Wavelength Selective Unit
OP Optical protection board
DOP Dual Optical Protection board
OPCS Optical protect for channel section
OPMS Optical protect for mux section
OPM Optical performance monitoring board
OSC Optical supervision channel board
OSCF Optical supervision channel board for Fast Ethernet
OHP Overhead processor
OHPF Overhead processor for Fast Ethernet
NCPF NE Control Processor
APSF Automatic Protection Switching board
SDM Supervision add/drop multiplexer
LAC Line Attenuation Compensator
VMUX Variable attenuation MUX
CA Clock Assignment board
DSAE Data Service Aggregation Electrical Interface Board
SAU SDH Access Unit Board
CSU Cross-switch and Synchronous-clock Unit
SMU SDH Multiplex Unit
