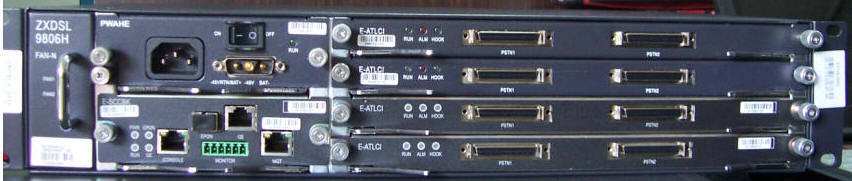

ZXDSL 9806H xPON DSL MDU
-
Model:
ZTE ZXDSL 9806H ZTE 9806H DSLAM -
Detail:
ASTEC ASTGC ATLA ATLC ATLCI ATLCZ SCCBK FEUA FEUB FEUC GFUA GFUB GFUC EPNA GPNB VOPCB -
Price:
$2000.00
- Free Technical Support
- Product Quality Protection
- On-time Shipment
- +86 755 8215 3862
- leo@uonel.com
- ywx39894
Share:
Overview
ASTEC ASTGC ATLA ATLC ATLCI ATLCZ SCCBK FEUA FEUB FEUC GFUA GFUB GFUC EPNA GPNB VOPCB
ZXDSL 9806H is an integrated multi-play broadband access platform, which is specially designed for the FTTx application scenarios as a small Digital Subscriber Line Access Multiplexer (DSLAM) or Multiple Dwelling Unit (MDU).
Card:
32/24*ADSL2+
32/24*VDSL2
16*SHDSL
64*POTS
32*ADSL2+ Combo
32*VDSL2 Combo
GPON EPON
XG-PON1 10G EPON
GE / FE/ GPON / EPON / XG-PON1 / 10G EPON
32/24*VDSL2
16*SHDSL
64*POTS
32*ADSL2+ Combo
32*VDSL2 Combo
GPON EPON
XG-PON1 10G EPON
GE / FE/ GPON / EPON / XG-PON1 / 10G EPON
Dimension （W*D*H）
482.6mm * 240mm * 88.1mm
Power Supply
220VAC or -48V DC
User Interface
ADSL2+/VDSL2/SHDSL/GE/FE/POTS/ISDN/BRI/PRI
Uplink Interface
GE/FE/GPON/EPON/10G EPON
482.6mm * 240mm * 88.1mm
Power Supply
220VAC or -48V DC
User Interface
ADSL2+/VDSL2/SHDSL/GE/FE/POTS/ISDN/BRI/PRI
Uplink Interface
GE/FE/GPON/EPON/10G EPON
Energy saving, Environment-friendly
Industry’s lowest power consumption, with average port power consumption being 30% less than that specified in EU COC
Low noise thanks to its adjustable-speed, quiet fan
Harmless, eco-friendly materials
Full service, diversified uplink modes, flexible networking
Multiple access modes, large capacity and high density, supporting up to 128 lines of ADSL2+ accesses, 128 lines of VDSL2 accesses, 192/256 lines of VOIP accesses, 64 FE ports, 64 lines of SHDSL.bis accesses, 32 lines of ISDN BRI accesses, or 16 lines of ISDN PRI accesses in 2U-high space.
Diversified uplink modes, supporting multiple uplink interfaces, such as GE, FE, EPON, GPON and 10G EPON
Flexible Networking, supporting P2P, P2MP, and star, chain, and ring networks
High reliability, strong environmental adaptability
Adaptable to AC/DC or AC + Battery power supplies, supporting 90V~286V AC power
Excellent high temperature performance, operating stably in -30~60°C harsh environments without any auxiliary equipment
Reliable lightning protection design, with 6KV overvoltage-protection user interfaces
Smart feed technology, which prolongs voice services by shutting off broadband services when the battery begins to supply power at POP site
High maintainability, low OPEX
Multiple remote test methods, supporting broadband port loop test and internal and external POTS line test
OLS test, including fiber breakage test, optical link diagnosis & test, auxiliary fiber troubleshooting
Real-time remote environment checking, including temperature, power and door alarms
Leading technology, award-winning, star product
Inndustry’s first small capacity DSLAM/MDU, with global deployment up to 50 million lines, the most widely used in the industry
Industry-leading VDSL2 product, which supports all VDSL2 profiles in a single VDSL2 board including 8b, 12a, 17a, and 30a
Star product, which won “InfoVision Award” at BBWF in 2007, “Best Green Innovation” Award at SOFNET high-end forum organized by IEC in London, “Science and Technology Progress” Award in Guangdong China in 2008, and “No.1 DSLAM Equipment Worldwide” named by Current Analysis.
Industry’s lowest power consumption, with average port power consumption being 30% less than that specified in EU COC
Low noise thanks to its adjustable-speed, quiet fan
Harmless, eco-friendly materials
Full service, diversified uplink modes, flexible networking
Multiple access modes, large capacity and high density, supporting up to 128 lines of ADSL2+ accesses, 128 lines of VDSL2 accesses, 192/256 lines of VOIP accesses, 64 FE ports, 64 lines of SHDSL.bis accesses, 32 lines of ISDN BRI accesses, or 16 lines of ISDN PRI accesses in 2U-high space.
Diversified uplink modes, supporting multiple uplink interfaces, such as GE, FE, EPON, GPON and 10G EPON
Flexible Networking, supporting P2P, P2MP, and star, chain, and ring networks
High reliability, strong environmental adaptability
Adaptable to AC/DC or AC + Battery power supplies, supporting 90V~286V AC power
Excellent high temperature performance, operating stably in -30~60°C harsh environments without any auxiliary equipment
Reliable lightning protection design, with 6KV overvoltage-protection user interfaces
Smart feed technology, which prolongs voice services by shutting off broadband services when the battery begins to supply power at POP site
High maintainability, low OPEX
Multiple remote test methods, supporting broadband port loop test and internal and external POTS line test
OLS test, including fiber breakage test, optical link diagnosis & test, auxiliary fiber troubleshooting
Real-time remote environment checking, including temperature, power and door alarms
Leading technology, award-winning, star product
Inndustry’s first small capacity DSLAM/MDU, with global deployment up to 50 million lines, the most widely used in the industry
Industry-leading VDSL2 product, which supports all VDSL2 profiles in a single VDSL2 board including 8b, 12a, 17a, and 30a
Star product, which won “InfoVision Award” at BBWF in 2007, “Best Green Innovation” Award at SOFNET high-end forum organized by IEC in London, “Science and Technology Progress” Award in Guangdong China in 2008, and “No.1 DSLAM Equipment Worldwide” named by Current Analysis.
