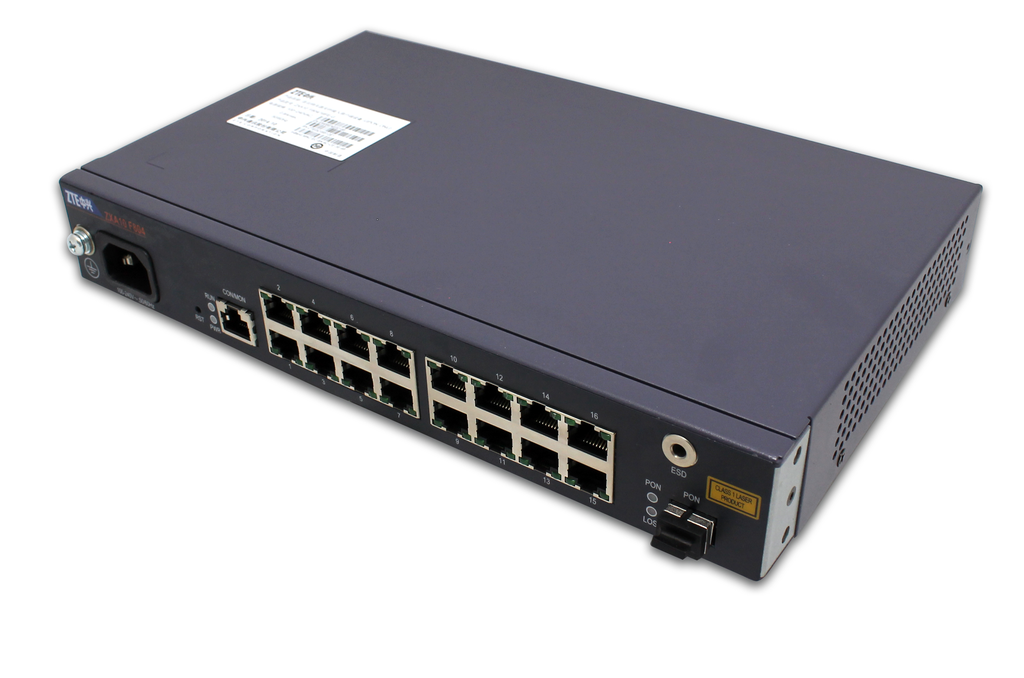

ZTE ZXA10 F804/24FE F804/16FE F804/8FE F804-8 F804-16 F804-24 EPON GPON ONU MDU

 ZXA10 F804 is a GPON Multiple Dwelling Unit for FTTB / FTTO scenarious. F804 can provide HSI / Video / VoIP converged access by connecting IAD or RG. The special feature of F804 is reverse PoE for no power supply scenario.

Product Features
• Supported Service: Internet, IPTV
• GPON: 32 T-CONTs, 256 GEM Ports
• Type B protection
• VLAN: 802.1Q, 802.1P, 802.1ad
• MAC address learning and aging
• MAC address table: 64k
• Multicast: IGMP v1/v2/v3 Snooping
• Multicast group: 1024
• QoS: Service flow classification based on physical port, MAC address, VLAN ID, VLAN priority level, IP address; SP/WRR/WP+WRR
• Management: SNMP, Telnet, Local serial port management, SSH, OMCI

GPON Interface
• Optical Port: 1 x GPON interface (SC/UPC)
• Transmission Distance: 0 - 20 km
• Transmit Rate: 2.488 Gbps downstream ; 1.244 Gbps upstream

User Network Interface
• 1 x 10/100Base-T in main control card (Half/full duplex; Auto MDI/MDIX; Auto negotiation)
• Optional UNIs:
      - 8 FE interfaces ; 16 FE interfaces
      - 24 FE interfaces ; 8 FE interfaces (Reverse PoE)

Optical Module
• Wavelength:
      - 1480 - 1500 nm
      - 1290 - 1330 nm
• Receiving: -28 dBm
• Transmitting Optical Power: 1 - 5 dBm

Physical Performance
• Power Consumption: 10.2W (8FE-G) ; 11.53W (16FE-G) ; 13.7W (24FE-G) ; 11.3W (8PoE-G)
• Dimensions (8FE/16FE/8PD): 170 x 280 x 43.6 (6.7 x 11.02 x 1.72 ")
• Dimensions (24FE): 160 x 313 x 43.6 (6.3 x 12.3 x 1.72 ")
• Working Temperature: -30 to 55°C
• Working Humidity: 5% - 95%
• Weight: 2.0 kg (8/16FE) ; 1.5 kg (8PD) ; 2.6 kg (24FE) / 4.4 lbs (8/16FE) ; 3.3 lbs (8PD) / 5.73 lbs (24FE)
• Power Supply: -48 VDC or 110 V / 220 VAC
• Mounting Mode: Rack / Cabinet / Desktop / Wall mounted
