ZTE ZXA10 F400M F400G EPON ONT ONU

 Superior Wireless 11N Transmission Performance  Comprehensive VoIP Services

IPv6 capability Advanced Content Sharing: DLNA Media Server

Multi-play Services  Printer Server and HDD Support on USB

Quality of Service (QoS)  Robust TR-069 Remote Management

Backup Battery Solution  GPON and XG-PON1 Coexistence

• GPON Compliance

ITU-T G.984.x GPON standards   1.244Gbps  burst  mode  upstream,2.488Gbps downstream

Upstream  1310nm,  Downstream1490nm   Output  optical  power:  Min 0.5dBm,Max +5dBm

Receiver  sensitivity:  Better  than  -28dBm

Wireless  Frequency: 2.4 GHz  IEEE 802.11b/g/n 128 bits WEP data encryption  WPA/WPA2 (Wi-Fi Protected Access)

Security: WPS (Wireless Protected Setup)  WMM(Wi-Fi Multi Media)  Max 4 Broadcast/hide SSIDs Max 128 users one SSID

VoIP:  SIP(RFC 3261)/H.248/MGCP DTMF Dialing /DTMF Digits /DTMF encoding by RFC 2833

5-REN, balanced ring, 55V RMS   Codec: G.711 (μ-law and A-law), G.722, G.729

32 ms echo cancellation  VAD/CNG  IN-BAND method  T.38/T.30 FAX

Caller ID/ Call Waiting/ Call Forwarding/ Call Transfer/ Call Toggle/ Three Way Calling/   Distinctive Ringing

CATV F-Type connector RF output level of +17 dBmV  RF Passband: 47 MHz~870 MHz

Switched on/off by remote control   RF video over 1550nm wavelength

USB: File sharing / Profile quick backup  USB fast recovery

DLNA DMS   USB 2.0, full speed, high speed

Router: IPv6 / IPv4 Dual Stack NAT/  SNTP Static routing, and dynamic routing in RIPV1/V2  PPPoE Client/Pass Through

DNS Client/Server  IGMP v1/ v2/ v3   IGMP proxy/snooping  SNTP

• Firewall/Security

Traffic filtering based on UNI port, VLAN ID, 802.1p,UNI+802.1p or VLAN+802.1p

DOS attack defending  MAC address filtering  BUM(Broadcast, Unicast, Multicast) attack protection

Limit MAC address per UNI port or per ONT   Broadcast packages rate limit

AES-128   Broadcast storm suppression

QoS  Rate limitation  Classifying upstream traffic into VLANs with various Ethernet priorities

Marking Ethernet priority based on DSCP value  Ingress rate limit/ Egress shaping

• SP/WRR/SP+WRR

TR-069 remote management   Local WEB and telnet management

Local built-in diagnostic function   Logs and statistics

Loop back function  OMCI management

Hardware Specifications

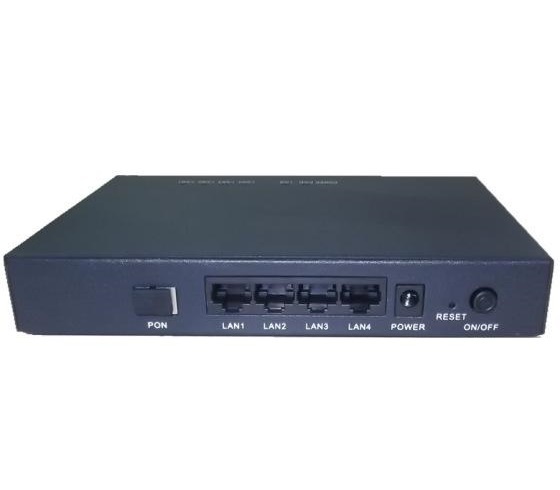

WAN: One SC/APC port for GPON   LAN: Four RJ-45 ports for Gigabit Ethernet interfaces

 FXS: Two RJ-11 ports for VoIP  USB: Two USB 2.0 host interfaces

Wi-Fi: 802.11b/g/n(2X2)  CATV: One RF interface

BATTERY: One RJ-45(reverse) port for UPS monitor

Button:  - Reset    Power ON/OFF

LED Status indicators : Power, PON, LOS, ALARM, LAN1, LAN2, LAN3, LAN4, POTS1, POTS2, WLAN, WPS, USB, BATTERY

Net weight: 580g  Size: 220 (W) x 180(D) x 40(H) mm

Power input: 12 VDC 1.5A   Power consumption: Less than 12W
