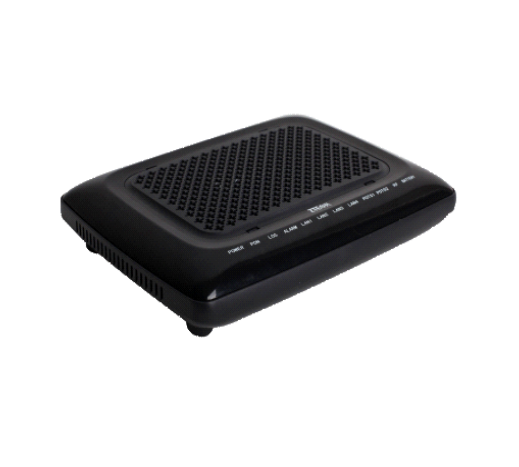

ZXA F625G,ZTE ONT,4GE+2POTS+1RF,Bridge/Route+Voice

Multi-play Services

The F625G can provide CATV service, allow multiplication of capacity and enablesbidirectional communications over one strand of fiber for CATV or Internet services.

 Full GE Ports for Speeds 10x Faster than Fast Ethernet

Comprehensive VoIP Services

Quality of Service (QoS)

Robust TR-069 Remote Management

Backup Battery Solution

GPON and XG-PON1 Coexistence

ITU-T  G.984.5 has defined  the WBF(Wavelength Block Filter) feature to coexist with XG-PON1 ONU within one ODN network and one  feed  fiber  . Now  the optical modules  installed  in ZTE full serial GPON ONTs have  integrated with WBF  feature   for future-proof evolution.

Technical Specifications:

GPON Compliance

ITU-T G.984.x GPON standards

ITU-T  G.984.2  amd1,  Class  B+  and Class C+ with APD  receiver and DFB transmitter

1.244Gbps  burst  mode  upstream,

2.488Gbps downstream

Upstream  1310nm,  Downstream 1490nm

Laser safety feature

VoIP SIP(RFC 3261)/H.248/MGCP   DTMF dialing /DTMF digits /DTMF encoding by RFC 2833

5-REN, balanced ring, 55V RMS   Codec: G.711 (μ-law and A-law), G.722, G.729

32 ms echo cancellation  VAD/CNG

IN-BAND method  T.38/T.30 FAX

Caller ID/ Call Waiting/ Call  Forwarding/ Call Transfer/ Call Toggle/

Three Way Calling/ Distinctive Ringing

CATV

F-Type connector   RF output level of +17 dBmV

RF Passband: 47 MHz~870 MHz  Switched on/off by remote control

RF video over 1550nm wavelength

Router: DNS Client/Server  PPPoE   DHCP  SNTP  IGMP Snooping  WAN connection IGMP V1/V2/V3

Firewall/Security

Traffic filtering based on UNI port, VLAN ID, 802.1p,UNI+802.1p or VLAN+802.1p

DOS attack defending  MAC address filtering  BUM(Broadcast, Unicast, Multicast) attack protection

Limit MAC address per UNI port or per ONT  Broadcast packages rate limit

AES-128   Broadcast storm suppression

QoS Rate limitation Classifying upstream traffic into VLANs with various Ethernet priorities

Marking Ethernet priority based on DSCP value Ingress rate limit/ Egress shaping

SP/WRR/SP+WRR

TR-069 remote management  Local WEB and telnet management

Local built-in diagnostic function   Logs and statistics

Loop back function  OMCI management

Hardware Specifications

WAN: One SC/APC port for GPON  LAN: Four RJ-45 ports for Gigabit Ethernet interfaces

FXS: Two RJ-11 ports for VoIP   CATV: One RF interface

UPS: One RJ-45(reverse) port for UPS monitor Button:  Reset   Power ON/OFF

LED Status indicators : Power, PON, LOS, ALARM, LAN1, LAN2, LAN3, LAN4, POTS1, POTS2, RF,   BATTERY

Net weight: 468g

Size: 208 (W) x 159(D) x 44(H) mm

Power input: 12 VDC 1.5A  Power consumption: Less than 11W  CE certification
