ZTE ZXA10 F412 EPON ONT ONU
-
Model:
ZTE F412 ZXHN -
Detail:
EPON ONT ONU -
Price:
$50.00
- Free Technical Support
- Product Quality Protection
- On-time Shipment
- +86 755 8215 3862
- leo@uonel.com
- ywx39894

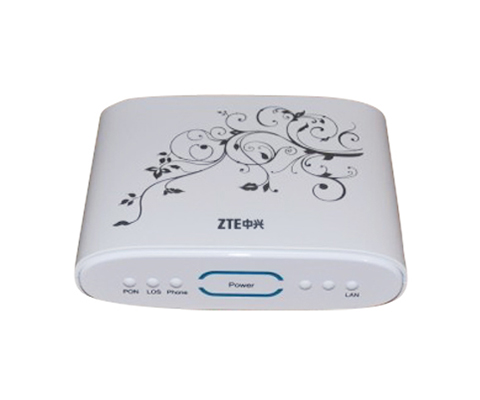

ZXHN F412 is a EPON Optical Network Terminal designed for FTTH scenario. It provides subscribers rich, colorful, individualized, convenient and comfortable services including voice, video (IPTV) and high speed internet access. It has a small, smart appearance and green, energy-saving advantage.
Specification
|
EPON Interface |
Optical port: 1 x EPON interface (SC/APC) Transmission Distance: 0 ~ 20km Transmit rate: 1.25Gbps downstream; 1.25Gbps upstream |
|
User Network Interface |
2x10/100 Base-T;Half/full duplex; Auto MDI/MDIX; Auto negotiation 1 x POTS interfaces |
|
Optical Module |
Receiving: 1480~1500 nm Transmitting: 1280~1350 nm Receiving Sensitivity: -27dBm Transmitting Optical Power: 0~4dBm |
|
Main Function |
Supported service: Internet, IPTV Support standard OAM and extended OAM Support authentication Mac/Loid/Mac+Loid VLAN: 802.1Q, 802.1P, 802.1ad MAC address table: 1K L3 function: DHCP server/Client, DNS Client, NAT IPv6: Dual Stack, DS-Lite VoIP: SIP/H.248, G.711/G.722/G.729, T.30/T.38 Multicast: IGMP v1/v2/ Snooping/Proxy, MLD v1 Snooping Multicast group per user port: 256 QoS: service flow classification based on physical port, MAC address, VLAN ID, VLAN priority level, IP address; SP/WRR/SP+WRR Management: local web management, OAM |
|
Physical Performance |
Power consumption: <6W Dimensions: 130mm(W) x 35mm(H) x103mm(D) Working temperature: 0℃ ~ 40℃ Working humidity: 5% ~ 95% Weight: about 0.3Kg Power supply: 12V DC Mounting mode: Desktop/Wall mounting |
