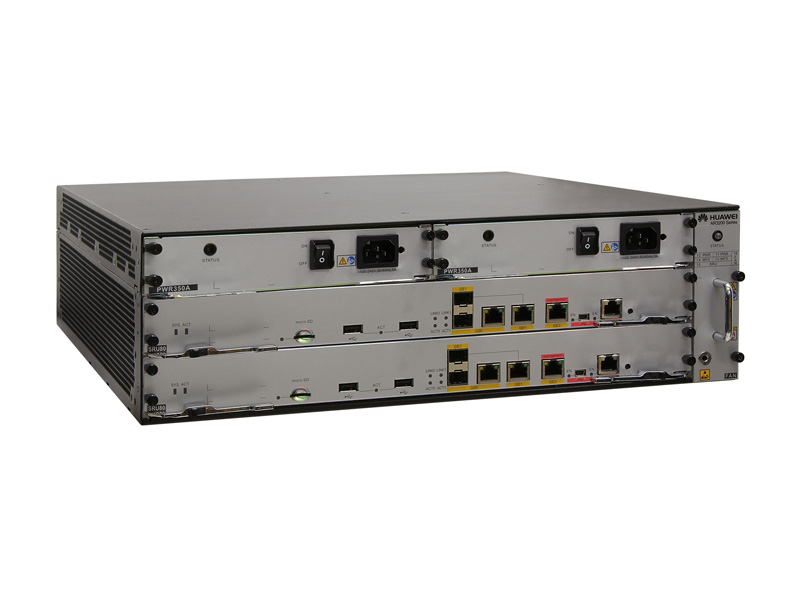

Huawei AR3200 Series Huawei AR3260

WAN speed with services (IMIX):

• 1 Gbit/s (with SRU40*)
• 2 Gbit/s (with SRU80*)
• 1 Gbit/s (with SRU100E*)
• 4.5 Gbit/s (SRU200*)
• 5.5 Gbit/s (SRU400*)
• Hardware-based Traffic Management
  (with SRU80, SRU200* and SRU400*)
• Hardware-based HQoS (with SRU80, SRU200* and SRU400*)
• Fixed port:
• • SRU40: 3 x GE (2 x Combo)
  • SRU80: 3 x GE (2 x Combo)
  • SRU100E: 4 x GE Combo+ 2 x GE SFP
  • SRU200: 4 x GE Combo+ 2 x 10 GE SFP+
  • SRU400: 4 x GE Combo+ 2 x 10 GE SFP+

• Slots: 4 x SIC + 2 x WSIC + 4 x XSIC
• Dimensions (H x W x D): 130.5 mm x 442 mm x 470 mm

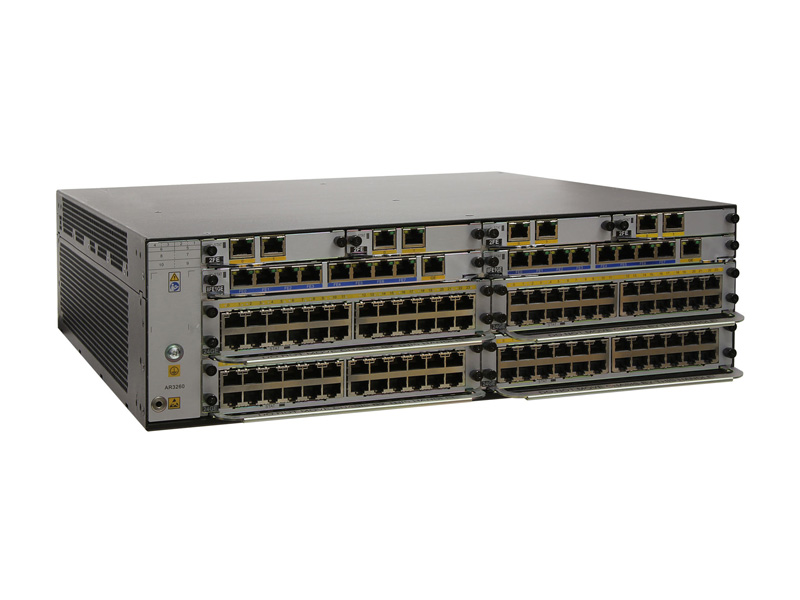

AR3200 routers support optional interface cards, including Ethernet, E1/T1/PRI/VE1, synchronous/asynchronous, ADSL2+/G.SHDSL, ISDN, CPOS, EPON/GPON, FXS/FXO voice cards, 3G, LTE, and E&M interface cards. They are available in the following formats: Smart Interface Cards (SICs), WSIC (Double-Width SIC), and XSIC (Double-Height WSIC), depending on the number of slots available.
