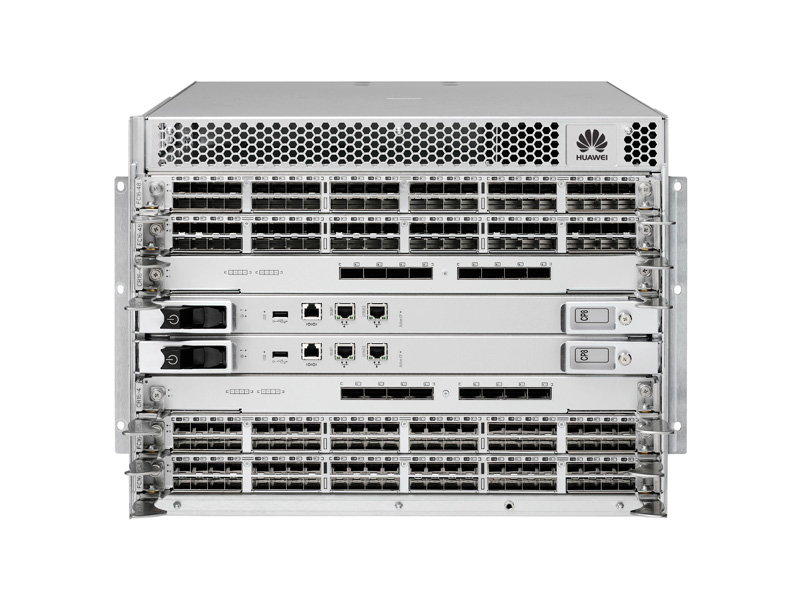

Huawei OceanStor SNS5192 switches

Model:
Huawei OceanStor SNS5192 switches

Detail:
The OceanStor series of switches provides excellent reliability with optimal performance, and is a cost-effective solution to enable mission-critical tasks for data centers Provides “pay-as-you-grow” flexibility and Ports-on-Demand (PoD) capabilities for port expansion, with speeds up to 16 Gbit/s Simplifies and centralizes end-to-end SAN management with comprehensive diagnostics, monitoring, and automation

Price:

$4000.00

Buy Now Inquire Now

Free Technical Support
Product Quality Protection
On-time Shipment

+86 755 8215 3862
leo@uonel.com
ywx39894

Product Overview Reviews

Overview

The OceanStor series of switches provides excellent reliability with optimal performance, and is a cost-effective solution to enable mission-critical tasks for data centers Provides “pay-as-you-grow” flexibility and Ports-on-Demand (PoD) capabilities for port expansion, with speeds up to 16 Gbit/s Simplifies and centralizes end-to-end SAN management with comprehensive diagnostics, monitoring, and automation

Specifications

Model	SNS3096	SNS5192	SNS5384
Number of Ports	A maximum of 96 ports in increments of 24; the number of general-purpose ports can be increased to 48, 72, or 96 using PoD licenses.	A maximum of 256 ports; a fully populated chassis includes four blades, and each blade supports 32, 48, or 64 ports.	A maximum of 512 ports; a fully populated chassis includes eight blades, and each blade supports 32, 48, or 64 ports.
Port Types	D_Port, E_Port, EX_Port, F_Port, and M_Port
Port Rates	Auto-sensing of 2, 4, 8, and 16 Gbit/s
Maximum Fabric Latency	Latency for locally switched ports is 700 ns
Aggregate Bandwidth	1,536 Gbit/s (96 ports x 16 Gbit/s data rate)	5.1 Tbit/s (256 ports x 16 Gbit/s data rate + 1.024 Tbit/s ICL bandwidth)	10.2 Tbit/s (512 ports x 16 Gbit/s data rate + 2.048 Tbit/s ICL bandwidth)
Media Types	SFP+, LC connector; 16 Gbit/s SWL, LWL, and ELWL
Maximum Frame Size	2,112-byte payload
Frame Buffers	8,192 frames dynamically allocated
Scalability	Full fabric architecture with a maximum of 239 switches
