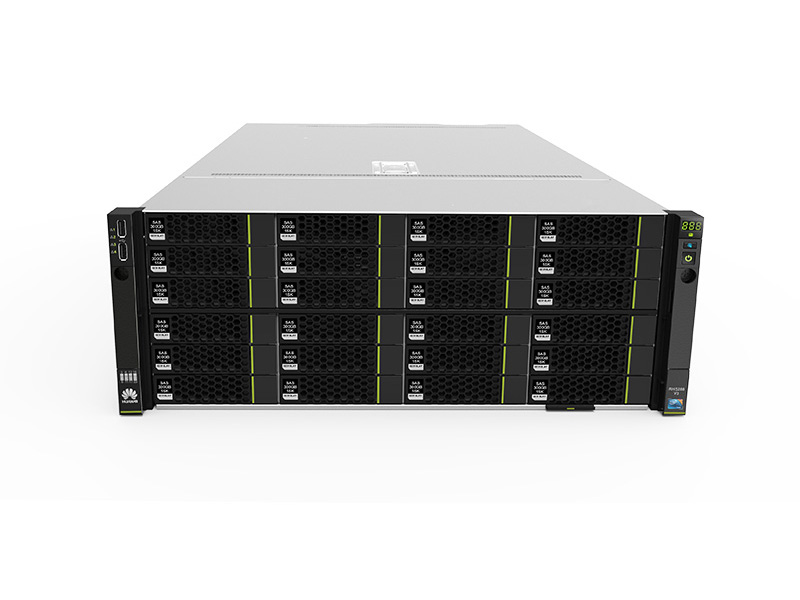

Huawei 5288 V3 Rack Server

  • Model:

    Huawei 5288 V3 Rack Server
  • Detail:

    Meet tomorrow’s Big Data challenges today with Huawei’s FusionServer 5288 V3 rack server. Offering ultra-large storage capacity, flexible resource expansion, and high computing performance, this 4U, 2-socket rack server is the ideal choice for cold data and cloud storage, video surveillance, and Big Data applications.
  • Price:

    $2000.00

  • Condition:

    Brand New Sealed
  • Availability:

    IN STOCK

  • Quantity:

  • Free Technical Support
  • Product Quality Protection
  • On-time Shipment
Overview
Meet tomorrow’s Big Data challenges today with Huawei’s FusionServer 5288 V3 rack server. Offering ultra-large storage capacity, flexible resource expansion, and high computing performance, this 4U, 2-socket rack server is the ideal choice for cold data and cloud storage, video surveillance, and Big Data applications.



Specifications

Processors

Intel® Xeon® E5-2600 v3/v4 series processors

Memory

16 DDR4 RDIMMs/LRDIMMs

Internal Storage

5288 V3 with 40 hard disks
Front:
  • 24 x 3.5-inch SAS/SATA HDDs
Rear:
  • 16 x 3.5-inch SAS/SATA HDDs
  • 14 x 3.5-inch SAS/SATA HDDs + 2 x 2.5-inch SSDs or SAS/SATA HDDs
  • 12 x 3.5-inch SAS/SATA HDDs + 4 x 2.5-inch SSDs or SAS/SATA HDDs

5288 V3 with 28 hard disks
Front:
  • 24 x 3.5-inch SAS/SATA HDDs
Rear:
  • 4 x 3.5-inch SAS/SATA HDDs
  • 2 x 3.5-inch SAS/SATA HDDs + 2 x 2.5-inch SSDs or SAS/SATA HDDs
  • 4 x 2.5-inch SSDs or SAS/SATA HDDs

RAID

  • RAID 0, 1, 10, 5, 50, 6, or 60
  • Configured with a supercapacitor for power-off protection for the cache (optional)
  • RAID state transition, configuration memory, self-diagnosis, and web-based remote configuration

LOM Network Ports

Supported network configurations:
  • 2 GE electrical ports, supporting Network Controller Sideband Interface (NC-SI), Wake on LAN (WoL), and pre-boot execution environment (PXE)
  • 4 GE electrical ports, supporting NC-SI, WoL, and PXE
  • 2 x 10 GE optical ports, supporting NC-SI and PXE
  • 2 x 10 GE electrical ports, supporting NC-SI, WoL, and PXE
  • 2 GE electrical ports and 2 x 10 GE optical ports, supporting NC-SI, WoL, and PXE

PCIe Expansion

Up to 6 PCIe 3.0 slots

Fan Modules

Hot-swappable fan modules in N+1 redundancy mode

Power Supply Units

2 hot-swappable PSUs in 1+1 redundancy mode

Management

  • Uses Huawei Hi1710 management chip and independent ports
  • Supports standard management interfaces, such as SNMP and IPMI; provides GUI, remote KVM, virtual media, SOL, Predictive Failure Analysis (PFA), intelligent power supply, remote control, and hardware monitoring
  • Supports Huawei eSight management software and integration with third-party management systems, such as VMware vCenter, Microsoft System Center, and Nagios

Operating Temperature

5ºC to 40ºC (41ºF to 104ºF), ASHRAE Class A3 compliant
