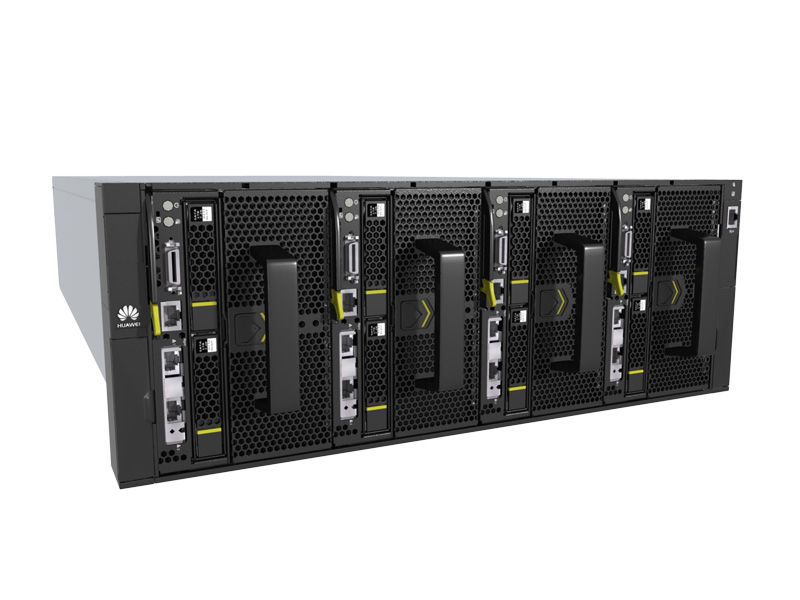

Huawei XH628 V3 Server Node

Provides high density and large capacity which is ideal for distributed, large-capacity storage solutions

• Four XH628 V3 server nodes can be deployed in 4U space, saving up to fifty percent equipment footprint compared with conventional 2U rack servers, and uses chassis PSUs and fan modules
• Supports up to four Huawei ES3000 PCIe storage cards and offers 1.56 million IOPS, which is equivalent to 1,500 mainstream SAS HDDs
• A cabinet can be configured with a maximum of 40 XH628 V3 nodes, with a maximum capacity of 400 TB

• Specifications

  Specifications	XH628 V3
  Form Factor	Full-height, 2-socket server node occupying two slots
  Number of Processors	1 or 2
  Processor	Intel® Xeon® E5-2600 v3/v4 series processors
  Memory	16 DDR4 DIMMs
  Internal Storage	12 x 3.5-inch hot-swappable SAS/SATA HDDs or 2.5-inch hot-swappable SAS/SATA HDDs or SSDs (Optional) 2 x 2.5-inch SATA HDDs or SSDs 2 x Mini-SSDs (SATA DOMs) 1 x USB flash drive
  LOM Network Ports	2 x GE, 4 x GE, 2 x 10 GE, 2 x GE + 2 x 10 GE, 2 x 10G Base-T, or 2 x 56G IB
  PCIe Expansion	Up to 5 PCIe slots
  Management	Built-in iBMC: IPMI, SOL, KVM over IP, and virtual media One 10/100 Mbit/s RJ45 management network port
  Operating Systems Supported	Citrix XenServer Microsoft Windows Server Oracle Enterprise Linux Oracle Server VM Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi
  Operating Temperature	5ºC to 40ºC (41ºF to 104ºF), ASHRAE Class A3 compliant
