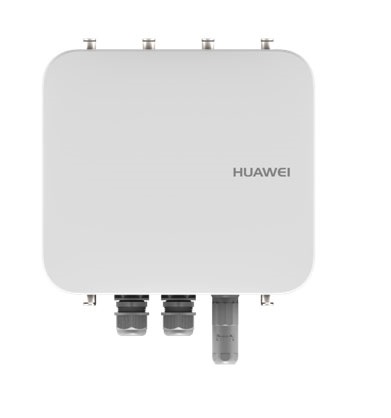

Huawei AP8130DN Access Points

Model:
Huawei AP8130DN Access Points Data Sheet

Detail:
Supports Fit or Fat AP, bridge, WDS, and mesh networking; as a wireless bridge, the AP8130DN can forward data at speeds up to 2.6 Gbit/s using two 5 GHz antennas; acts as a PoE power supply (802.3at-compliant)

Price:

$530.00

Buy Now Inquire Now

Free Technical Support
Product Quality Protection
On-time Shipment

+86 755 8215 3862
leo@uonel.com
ywx39894

Product Overview Reviews

Overview

Supports Fit or Fat AP, bridge, WDS, and mesh networking; as a wireless bridge, the AP8130DN can forward data at speeds up to 2.6 Gbit/s using two 5 GHz antennas; acts as a PoE power supply (802.3at-compliant)

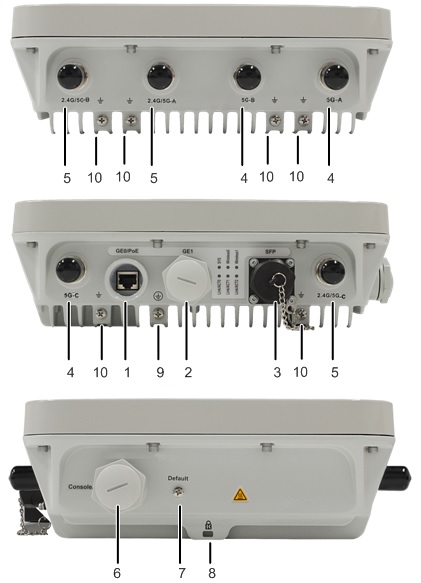

1. GE0/PoE interface: 10M/100M/1000M interface, which connects to the wired Ethernet and supports the PoE power supply
2. GE1 interface: 10M/100M/1000M interface, which connects to the wired Ethernet
3. SFP: Optical interface
4. 5G: Connects a 5 GHz antenna to the AP to send and receive wireless signals. The port type is N-type female
5. 2.4G/5G: Connects a 2.4 GHz or 5 GHz antenna to the AP to send and receive wireless signals. The port type is N-type female
6. Console interface
7. Default button: Restores the factory settings if you remove the screw and hold down the button for more than 3 seconds
8. Security slot: Connects to a security lock
9. Device ground screw: Connects a ground cable to the AP
10. Ground screw for the surge protective device: Connects the AP to the ground point of an external surge protective device
