CR2M04BASD02

  • Model:

    Huawei NetEngine NE20E Series Router CR2M04BASD02
  • Detail:

    NE20E-S 4 DC Basic Configuration Includes NE20E-S 4 Chassis,2*MPUE,2*DC Power,Power cord,without Software Charge and Document
  • Price:

    $5700.00

  • Condition:

    Brand New Sealed
  • Availability:

    IN STOCK

  • Quantity:

  • Free Technical Support
  • Product Quality Protection
  • On-time Shipment
Overview
NE20E-S 4 DC Basic Configuration Includes NE20E-S 4 Chassis,2*MPUE,2*DC Power,Power cord,without Software Charge and Document



Overview (CR2M04BASD02)

Huawei NetEngine NE20E-S Series Universal Service Router CR2M04BASD02 provides powerful service access and aggregation capabilities and various features, such as Layer 2/3 VPN, MPLS, Multicast, QoS, IPv4/IPv6, etc and the flexible design to provide all-around network solution for enterprise users, staisfying diversified service requirements in the future. CR2M04BASD02 - NE20E-S4 DC Basic Configuration includes NE20E-S 4 Chassis, 2 * MPUE, 2 * DC Power, Power cord.



Huawei NE20E-S routers use the latest VRP8 platform, which is also used by the NE5000E core router. The VRP uses the Resilient Distributed Framework (RDF), with separated management plane, service plane, data plane, and monitoring module, greatly increasing the system flexibility, reliability, manageability, and expansibility. The NE20E-S supports various interface types (E1/CE1, POS, CPOS, GE, 10GE, and 40GE) and high-density fixed ports to provide access and aggregation WAN services as well as Ethernet multi-service transmission platform (MSTP) aggregation services, satisfying various service requirements.

Quick Specs

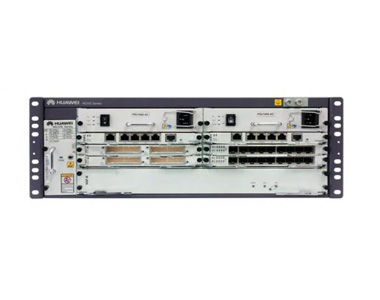

Figure 1 shows the appearance of Huawei Router - CR2M04BASD02.

 CR2M04BASD02

Table 1 shows the Quick Specs.

Product Code

Huawei Router - CR2M04BASD02

Switching Capacity

480 Gbit/s

Forwarding Performance

180 Mpps

Fixed Ports

none

Number of Slots

2 MPUs

1 NSP

4 PICs

Power module type

DC power module

Weight

13.7 kg (DC)

Dimensions (W x D x H)

132 mm x 442 mm x 220 mm (DC, 3U)


Compare to Similar Items

Table 3 shows the comparison between CR2M04BASD02 and CR2P2EBASA10.

Model

CR2M04BASD02

CR2P2EBASA10

Switching Capacity

480 Gbit/s

160 Gbit/s

Forwarding Performance

180 Mpps

70 Mpps

Fixed Ports

none

2 x 10 GE

(SFP+) and 24 x GE (SFP)

Number of Slots

2 MPUs

1 NSP

4 PICs

2 PICs

Power module type

DC power module

AC power module

Weight

13.7 kg (DC)

10.3 kg (AC)

Dimensions (W x D x H)

132 mm x 442 mm x 220 mm (DC, 3U)

89 mm x 442 mm x 220 mm (2U)
