RTN 320

  • Model:

    RTN 320
  • Detail:

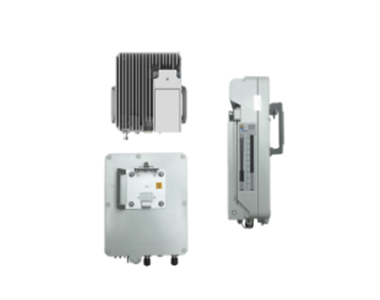

    Huawei RTN320 Ultra-broadband, High Spectral Efficiency, Max 2 Gbit/s full-outdoor radio transmission equipment
  • Price:

    Request For Quotation

  • Condition:

    Brand New Sealed
  • Availability:

    IN STOCK

  • Quantity:

  • Free Technical Support
  • Product Quality Protection
  • On-time Shipment
Overview
Huawei RTN320 Ultra-broadband, High Spectral Efficiency, Max 2 Gbit/s full-outdoor radio transmission equipment

RTN 320 is new-generation full-outdoor radio transmission equipment, which supports two microwave links and operates at 6 GHz to 42 GHz. RTN 320 provides a solution for access in the last mile, which significantly reduces operational expenditure (OPEX) and capital expenditure (CAPEX) of mobile backhaul networks. It also provides a microwave channel solution for transparent transmission on the IP RAN.



 Ultra-broadband, High Spectral Efficiency, Max 2 Gbit/s per Carrier

    • 112 MHz channel spacing, 4096QAM modulation, and up to 2 Gbit/s throughput per carrier, meeting different backhaul requirements.

    • Adaptive modulation (AM), which increases link capacity while assuring high availability of high-priority services

    • Ethernet Frame Header compression, further enhancing spectral efficiency and packet service throughput over the air interface

Easy Deployment, Easy OAM

    • Full outdoor architecture, allowing zero footprint installation

    • USB flash drive for commissioning and quick configuration, enabling plug and play on site, thereby lowering engineering costs and improving deployment efficiency

    • Wi-Fi maintenance port, allowing for contact-free maintenance, lowering maintenance costs

Comprehensive Ethernet Capability

    • Supporting E-Line or E-LAN services

    • Supporting 8-level QoS, empowering service-aware networks and guaranteeing the transmission quality of high-priority services

    • Supporting the link aggregation group (LAG) feature

    • Supporting ETH OAM, enabling SDH-like maintenance on IP networks and improving maintenance efficiency of microwave networks

    • Supporting Synchronous Ethernet and IEEE 1588v2, meeting the synchronization requirements of wireless and IP networks

Easy Full Outdoor Reconstruction, Smooth Evolution

  • In full outdoor microwave reconstruction projects, RTN 320 can share antennas, couplers, and XMC ODUs with RTN 900, which can effectively protect operators' initial investment.

  • Customers can first deploy 1+0 and later upgrade to 2+0, XPIC, and MIMO dual-channel application. This improves bandwidth and spectral efficiencies, helping save initial investment and reduce TCO.
