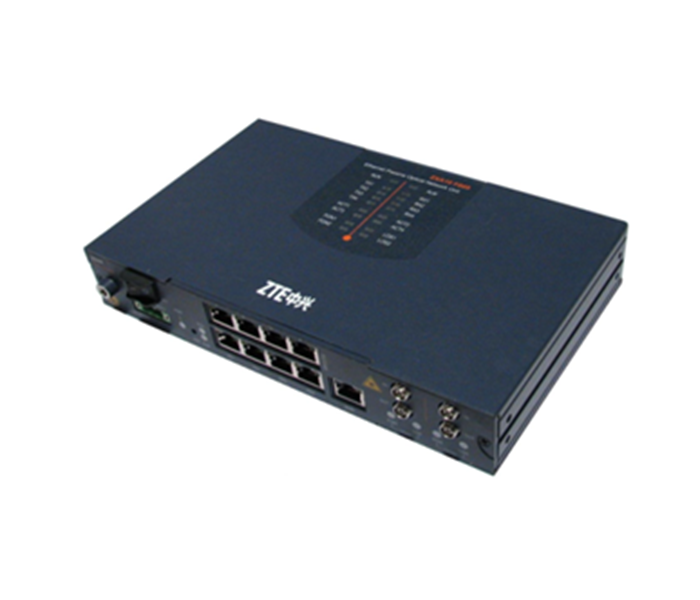

ZTE ZXA10 F809 PON MDU

Model:
ZTE ZXA10 F809 PON MDU

Detail:
The efficiency of the power supply can reach more than 85%, the power consumption of the whole machine is less than 10W, and the equipment has the mode of energy saving and electricity saving.

Price:

$500.00

Buy Now Inquire Now

Free Technical Support
Product Quality Protection
On-time Shipment

+86 755 8215 3862
leo@uonel.com
ywx39894

Product Overview Reviews

Overview

The efficiency of the power supply can reach more than 85%, the power consumption of the whole machine is less than 10W, and the equipment has the mode of energy saving and electricity saving.

ZXA10 F809 is an industrial grade ONU equipment, using industrial grade design, industrial grade devices and optical modules, suitable for all kinds of complex manufacturing environment applications, while providing serial data acquisition, monitoring and control of production operations for intelligent manufacturing workshop.

SNI：1*EPON 1*GPON
UNI：4*GE/FE+4*RS232/RW485
Dimensions：43.6 mm (H) x 235 mm (W) x 145 mm (D)
Weight：1kg
Operating environment：-40℃～+85℃
Relative humidity：5%~95%
Power supply：220VAC -48 VDC
Atmospheric pressure：62kPa~106kPa
Connector type：SC/PC
Optical linkage length：Max: 20KM
