ZTE ZXR10 9900 Series High-Capacity Core Switch
-
Model:
ZTE ZXR10 9900 Series -
Detail:
High-Capacity Core Switch ZTE 9904 ZTE 9908 ZTE 9912 ZTE 9916 -
Price:
$2500.00
- Free Technical Support
- Product Quality Protection
- On-time Shipment
- +86 755 8215 3862
- leo@uonel.com
- ywx39894
Share:
Overview

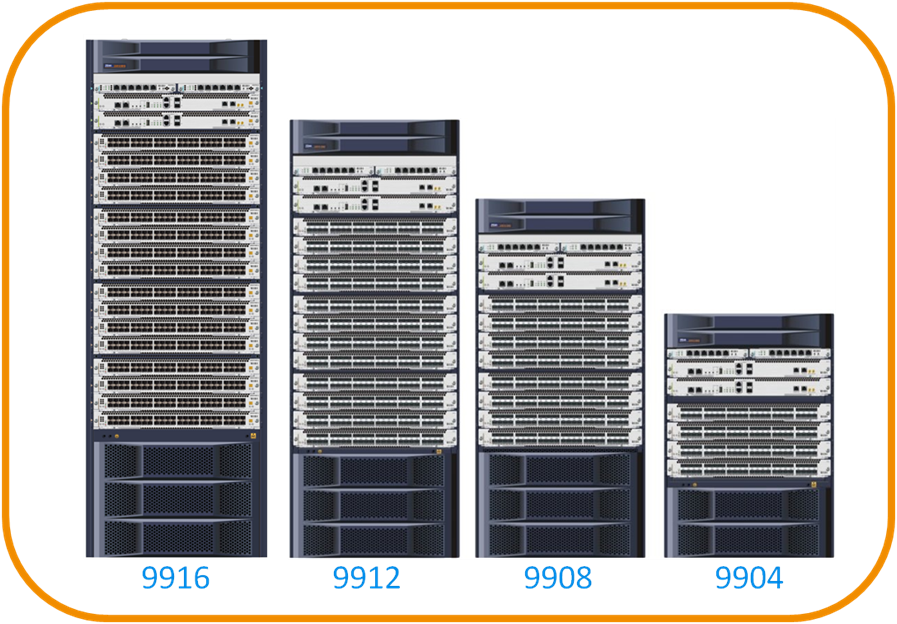

High-Capacity Core Switch ZTE 9904 ZTE 9908 ZTE 9912 ZTE 9916
| The Universal System Specification of the ZXR10 9900 Series switch: | ||||
| Parameters | 9904 | 9908 | 9912 | 9916 |
| Height | 14RU | 21RU | 25RU | 32RU |
| Dimensions (H*W*D,mm) | 619.5 *445*819 | 930.6 *445*819 | 1108.4 *445 *819 | 1419.6*445*819 |
| Number of Line Interface | 4 | 8 | 12 | 16 |
| Card Slots | ||||
| Number of Management | 2 | 2 | 2 | 2 |
| Process Unit Slots | ||||
| Number of Intelligent | 2 | 2 | 2 | 2 |
| Monitor Board Slots | ||||
| Interface Type | FE/GE/10GE RJ45; GE SFP; 10GE SFP+; | |||
| 40GE QSFP+; 100GE CXP; 100GE CFP2 | ||||
| Interface Card | 48 ports GE SFP optical interface card | |||
| 48 ports GE RJ45 electrical interface card | ||||
| 48 ports 10GE SFP+ optical interface card | ||||
| 48 ports 10GE RJ45 electrical interface card | ||||
| 6 ports 40GE QSFP+ optical interface card | ||||
| 12 ports 40GE QSFP+ optical interface card | ||||
| 36 ports 40GE QSFP+ optical interface card | ||||
| 2 ports 100GE CFP2 optical interface card | ||||
| 4 ports 100GE CFP2 optical interface card | ||||
| 8 ports 100GE CFP2 optical interface card | ||||
| 12 ports 100GE CXP optical interface card | ||||
| 36 ports 100GE QSFP28 optical interface card | ||||
| ACPowerSupply | 100V~240V,50Hz~60Hz | |||
| DCPowerSupply | -48V | |||
| HVDCPowerSupply | 192V~400V | |||
| Power Redundancy | AC/HVDC: 2+2, | AC/HVDC: 4+4, | AC/HVDC: 2 partitions | AC/HVDC: 2 partitions |
| and 3+3 each partition | and 4+4 each partition | |||
| Pattern | DC: 2 partition and | DC: 4 partition and | DC: 6 partition and | DC: 8 partition and |
| 1+1 each partition | 1+1 each partition | 1+1 each partition | 1+1 each partition | |
| Heat Dissipation Pattern | FanCooling, Independent fan Modules, Front-to-back Airflow | |||
| Working Temperature | Long term working temperature:-5oC~+45oC; | |||
| Short term working temperature:-10oC ~+55oC; | ||||
| Storage Temperature | -40oC ~+70oC | |||
| Working Humidity | 5%~95% (non-condensing) | |||
| Working Altitude | <5,000 meters | |||
| MTBF/MTTR | >426885hours | >303169hours | >284172hours | >272480hours |
| <30 minutes | <30 minutes | <30 minutes | <30 minutes | |
