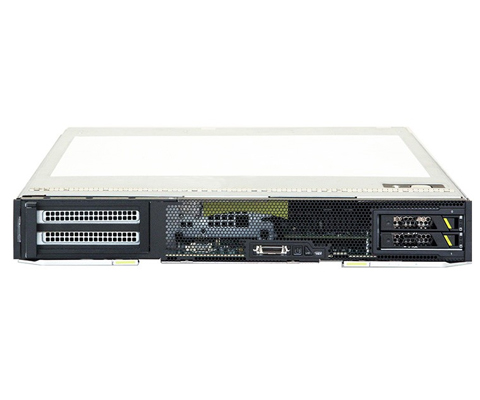

Huawei CH220 V3 I/O Expansion Compute Node compatible with E9000 Server

  • Model:

    E-Series Blade Server
  • Detail:

    Huawei FusionServer CH220 V3 I/O Expansion Compute Node is designed for application acceleration; server, network, and desktop virtualization; and superior scalability. It can be expanded for I/O acceleration components such as PCIe SSDs, GPUs, and High-Performance Computing.
  • Price:

    $1000.00

  • Condition:

    Brand New Sealed
  • Availability:

    IN STOCK

  • Quantity:

  • Free Technical Support
  • Product Quality Protection
  • On-time Shipment
Overview
Huawei FusionServer CH220 V3 I/O Expansion Compute Node is designed for application acceleration; server, network, and desktop virtualization; and superior scalability. It can be expanded for I/O acceleration components such as PCIe SSDs, GPUs, and High-Performance Computing.



Huawei CH220 V3 I/O Expansion Compute Node compatible with  E9000 Server

Huawei FusionServer CH220 V3 I/O Expansion Compute Node is designed for application acceleration; server, network, and desktop virtualization; and superior scalability. It can be expanded for I/O acceleration components such as PCIe SSDs, GPUs, and High-Performance Computing. It forms part of the CH100 and CH200 families of compute nodes, which are fully compatible with Huawei’s E9000 Blade Server.

This efficient compute node features dynamic energy-saving and power-capping technologies that manage and control power consumption with remarkably reduced low-load operating power. Carrier-class design, manufacturing, and components ensure high quality.

Specification

Item

Huawei FusionServer CH220 V3 I/O Expansion Compute Node

Form Factor

Full-width 2-socket compute node

Number of Processors

1 or 2

Processor Model

Intel Xeon E5-2600 V3 Series

Number of DIMMs

16 DDR4 DIMMs, providing a maximum memory capacity of 1 TB

Number of Hard Disks

2 x 2.5-inch SSDs, SAS HDDs, or SATA HDDs

Built-in Storage

2 x SATA DOMs
2 x Micro-SD cards (RAID1)
1 x USB 3.0

RAID Support

RAID 0 and 1

PCIe Expansion

6 full-height, half-length single-slots
1 full-height, full-length, dual-slot and 4 full-height, half-length single-slots
2 full-height, full-length dual-slots

OS Support

Microsoft Windows Server 2008/2012
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
Oracle Linux
CentOS
Citrix XenServer
Vmware

Operating Temperature

5ºC to 40ºC

Dimensions

Height: 60.46 mm (2.38 in)
Width: 423 mm (16.65 in)
Depth: 537.2 mm (21.15 in)
