CX600-X8A
-
Model:
CX600-X8A -
Detail:

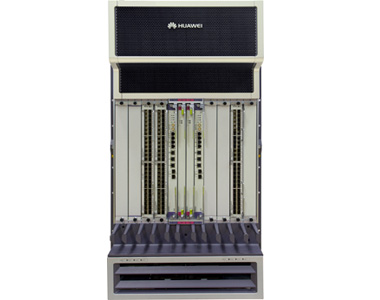

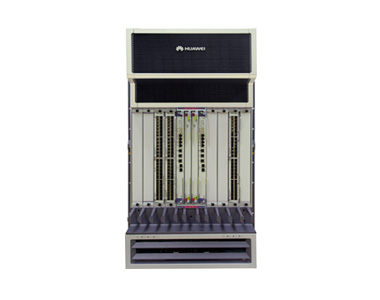

Huawei CX600 Metro Services Platform CX600-X8A -
Price:
$8000.00
- Free Technical Support
- Product Quality Protection
- On-time Shipment
- +86 755 8215 3862
- leo@uonel.com
- ywx39894
|
Item |
Specification |
|
|---|---|---|
|
Dimensions (H x W x D) |
930 mm (21U) x 442 mm x 650 mm (chassis main body dimensions) (36.61 in. x 17.40 i n. x 25.59 in.) Chassis main body dimensions 930 mm (21U) x 442 mm x 750 mm (chassis dimensions including the chassis's front and rear assembly and cable racks) (36.61 in. x 17.40 i n. x 29.53 in.) Chassis dimensions including the chassis's front and rear assembly and cable racks |
|
|
Installation location |
N68E cabinet or a standard 19-inch cabinet |
|
|
Weight |
Empty chassis |
DC: 68.1 kg (150.16 lb) AC: 63.7 kg (140.46 lb) |
|
Full configuration |
DC: 209 kg (460.85 lb) configured with 1T interface boards AC: 206.5 kg (455.33 lb) configured with 1T interface boards DC: 186.1 kg (410.35 lb) configured with 480G interface boards AC: 184.3 kg (406.38 lb) configured with 480G interface boards |
|
|
Integrated chassis (Weight for delivery) |
DC: 78.9 kg (173.97 lb) configured with 480 G interface boards AC: 74.5 kg (164.27 lb) configured with 480 G interface boards DC: 98.4 kg (216.97 lb) configured with 1T interface boards AC: 74.5 kg (164.27 lb) configured with 1T interface boards |
|
|
Typical power consumption |
6520 W configured with 1T interface boards 4770 W configured with 480G interface boards |
|
|
Heat dissipation |
21153.6 BTU/hour configured with 1T interface boards 15475.9 BTU/hour configured with 480G interface boards |
|
|
DC input voltage |
Rated voltage |
-48V DC / -60V DC |
|
Maximum voltage range |
-40V DC to -72V DC |
|
|
AC input voltage |
Rated voltage |
200 V AC to 240 V AC (220 V) |
|
Maximum voltage range |
180 V AC to 264 V AC |
|
|
System reliability |
MTBF (year) |
22.32 |
|
MTTR (hour) |
0.5 |
|
|
Ambient temperature |
Long term |
0°C to 45°C (32°F to 113°F) |
|
Short term |
-5°C to 55°C (23°F to 131°F) |
|
|
Remarks |
Temperature change rate limit: 30°C (86°F)/hour |
|
|
Storage temperature |
-40°C to 70°C (-40°F to 158°F) |
|
|
Ambient humidity |
Long term |
5% RH to 85% RH, non-condensing |
|
Short term |
5% RH to 95% RH, non-condensing |
|
|
Relative storage humidity |
5% RH to 95% RH, non-condensing |
|
|
Long-term operating altitude |
≤ 4000 m (13123.2 ft). If the altitude is between 1800 meters (5905.44 ft) and 4000 meters, the maximum operating temperature of the device must decrease by 1°C for every 220 meters (721.776 ft) increase in altitude. |
|
|
Storage altitude |
Lower than 5000 m (16404 ft.) |
|
