S3700-28TP-EI-AC
-
Model:
S3700-28TP-EI-AC 02352344 Huawei Quidway S3700 Switch -
Detail:
S3700-28TP-EI-AC Mainframe(24 Ethernet 10/100 ports, 2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP, AC 110/220V) -
Price:
$650.00
- Free Technical Support
- Product Quality Protection
- On-time Shipment
- +86 755 8215 3862
- leo@uonel.com
- ywx39894
Overview (S3700-28TP-EI-AC)
Huawei S3700-28TP-EI-AC switch provides Layer 2 functions and basic Layer 3 functions which offers IP routing (Static route, RIPv1, RIPv2, and ECMP).
Quick Specs

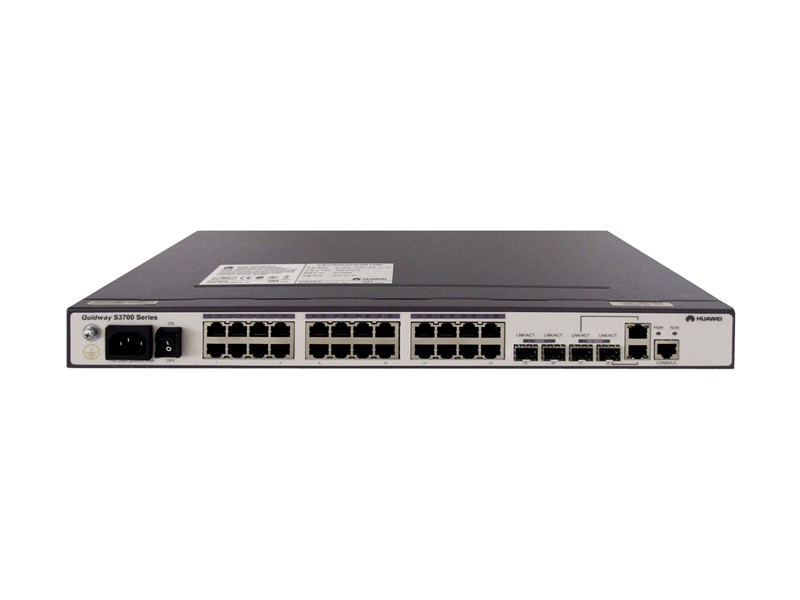

Figure 1 shows the appearance of Huawei S3700-28TP-EI-AC switch.
Table 1 shows the Quick Specs.
|
Product Code |
S3700-28TP-EI-AC |
|
Downlink Ports |
24 x Ethernet 10/100 ports |
|
Uplink Ports |
2 x Gig SFP and 2 dual-purpose 10/100/1000 or SFP |
|
Forwarding Performance |
9.6 Mpps |
|
Switching Capacity |
64 Gbit/s |
|
Stacking |
Supported |
|
Stack Connection Mode |
Service port connection |
|
Power |
AC 110/220V |
|
Heat Dissipation |
Natural heat dissipation |
|
Installation mode |
Rack mounting, desk mounting, wall mounting |
|
300-mm deep cabinet |
Supported |
|
Dimensions (W x D x H) |
44.2 cm x 22 cm x 4.36 cm |
|
Weight (Kg) |
3.6 Kg |
Product Details
Figure 2 shows the front panel of Huawei S3700-28TP-EI-AC switch.
Note:
|
① |
Ground Screw |
⑤ |
2 x 1000BASE-X Ethernet optical interfaces |
|
② |
AC Power Terminals |
⑥ |
2 x 1000M combo interfaces |
|
③ |
Power Switch |
⑦ |
One Console Port |
|
④ |
24 x 10/100BASE-TX Ethernet Electrical Ports |
· Ground Screw is used with a ground cable.
· AC Power Terminals are used with AC Power cables
· Two Combo Ports include 10/100/1000BASE-T and 100/1000BASE-X ports. FE/GE/GE-CWDM optical transceivers are applicable to the combo ports.
· Huawei S3700-28TP-EI-AC switch supports Huawei Intelligent Stack Technology (iStack). Multiple S3700 switches can be connected with stack cables to set up a stack, which functions as a virtual switch.
Figure 3 shows the back looking of Huawei S3700-28TP-EI-AC switch.
Compare to Similar Item
Table 3 shows the comparison of Huawei S3700-28TP-EI-AC and S3700-28TP-SI-AC.
|
Models |
S3700-28TP-EI-AC |
|
|
Downlink Ports |
24 x 10/100 Base-TX ports |
24 x 10/100 Base-TX ports |
|
Uplink Ports |
2 x 1,000 Base-X SFP ports, and 2 gigabit combo ports |
2 x 1,000 Base-X SFP ports, and 2 gigabit combo ports |
|
Power Supply |
AC power supply |
AC power supply |
|
Version |
Enhanced |
Standard |
