S3700-52P-EI-AC
-
Model:
S3700-52P-EI-AC -
Detail:
S3700-52P-EI-AC Mainframe(48 Ethernet 10/100 ports, 4 Gig SFP, AC 110/220V) -
Price:
$700.00
- Free Technical Support
- Product Quality Protection
- On-time Shipment
- +86 755 8215 3862
- leo@uonel.com
- ywx39894
Overview (S3700-52P-EI-AC)
The S3700-52P-EI-AC is a Huawei S3700 series switch, supporting forty-eight 10/100BASE-TX ports, two 1000BASE-X and two 100/1000BASE-X uplink interfaces. Huawei S3700 Enterprise Switches are designed for resilient 100 Mbit/s Fast Ethernet L3 switching in large data centers, or as core switches in small to medium-sized enterprise campus IT environments.
Quick Specs

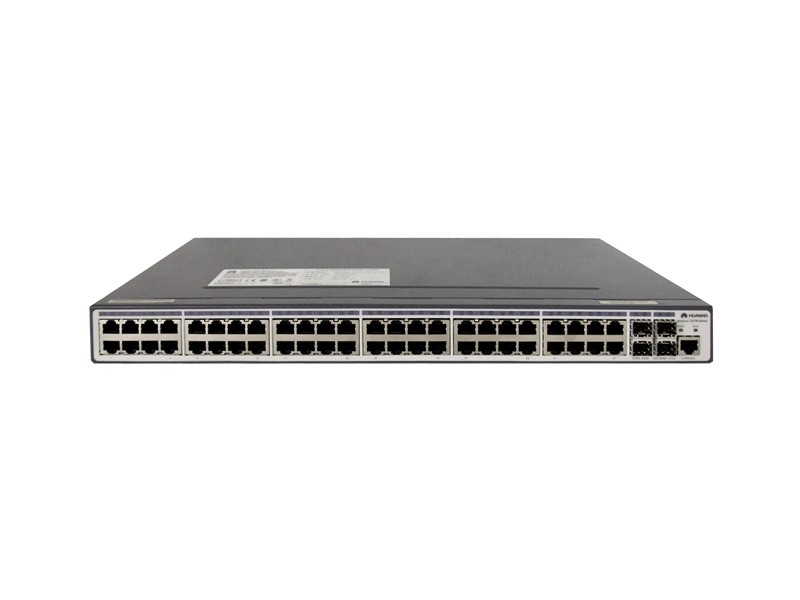

Figure 1 shows the appearance of Huawei S3700-52P-EI-AC switch.
Table 1 shows the Quick Specs.
|
Product Code |
S3700-52P-SI-AC |
|
Downlink Ports |
48 × 10/100BASE-TX ports |
|
Uplink Ports |
2 × 100/1000 Base-X SFP ports, and 2 × 1,000 Base-X SFP ports |
|
Forwarding Performance |
13.2 Mpps |
|
Switching Capacity |
64 Gbit/s |
|
Stacking |
Supported |
|
Stack Connection Mode |
Service port connection |
|
Power |
Built-in AC power module |
|
Heat Dissipation |
Intelligent heat dissipation |
|
Installation mode |
Rack mounting, desk mounting |
|
300-mm deep cabinet |
Not supported |
|
Dimensions (W x D x H) |
44.2 cm x 22 cm x 4.36 cm |
|
Weight (Kg) |
4.1 Kg |
Product Details
Figure 2 shows the front panel of Huawei S3700-52P-EI-AC switch.
Note:
|
① |
Forty-eight 10/100BASE-X Ethernet optical interfaces |
③ |
Two 100/1000BASE-X Ethernet optical interfaces |
|
② |
Two 1000BASE-X Ethernet optical interfaces |
④ |
One console interface |
Figure 3 shows the back panel of Huawei S3700-52P-EI-AC switch.
Note:
|
① |
AC jack |
|
② |
Switch |
|
③ |
Ground screw |
