S3700-52P-EI-24S-AC
-
Model:
S3700-52P-EI-24S-AC -
Detail:
S3700-52P-EI-24S-AC(24 Ethernet 10/100 ports,24 FE SFP,4 Gig SFP,AC 110/220V) -
Price:
$1200.00
- Free Technical Support
- Product Quality Protection
- On-time Shipment
- +86 755 8215 3862
- leo@uonel.com
- ywx39894
Overview (S3700-52P-EI-24S-AC)
Huawei S3700 Enterprise Switches are designed for resilient 100 Mbit/s Fast Ethernet L3 switching in large data centers, or as core switches in small to medium-sized enterprise campus IT environments. S3700-52P-EI-24S-AC offers 24 Ethernet 10/100 ports, 24 FE SFP, and 4 Gig SFP ports.
Quick Specs

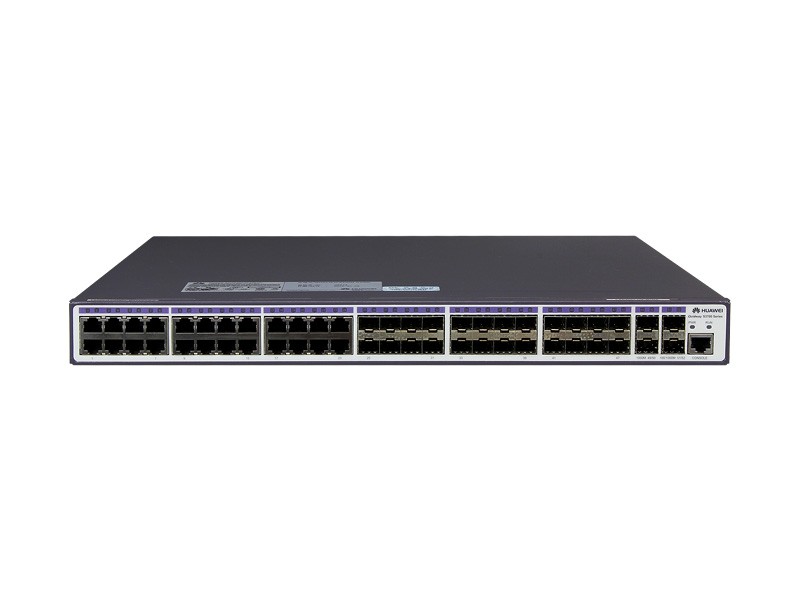

Figure 1 shows the appearance of Huawei S3700-52P-EI-24S-AC switch.
Table 1 shows the Quick Specs.
|
Product Code |
S3700-52P-EI-24S-AC |
|
Downlink Ports |
24 x Ethernet 10/100 ports 24 x FE SFP |
|
Uplink Ports |
4 Gig SFP |
|
MAC Address |
16K MAC |
|
VLAN |
4K VLANs |
|
Forwarding Performance |
13.2 Mpps |
|
Switching Capacity |
64 Gbit/s |
|
Stacking |
Supported |
|
Stack Connection Mode |
Service port connection |
|
Power |
AC power supply |
|
Heat Dissipation |
Forced air cooling with Built-in fans |
|
Installation mode |
Rack mounting, desk mounting |
|
Dimensions (W x D x H) |
44.2 cm x 42 cm x 4.36 cm |
Product Details
Figure 2 shows the front panel of Huawei S3700-52P-EI-24S-AC switch.
Note:
|
① |
24 x Ethernet 10/100 ports |
③ |
4 Gig SFP |
|
② |
24 x FE SFP |
④ |
One Console Port |
·Ground Screw, AC Power Socket and Power switch are on the back panel.
·Huawei S3700-52P-EI-24S-AC switch supports Huawei Intelligent Stack Technology (iStack). Multiple S3700 switches can be connected with stack cables to set up a stack, which functions as a virtual switch.
